CGF FLAME-PROOF / WEATHER-PROOF DOUBLE COMPRESSION CABLE GLANDS: [LONG THREADS]
Flame Proof Cable Glands are for use with all types of armored and un-armored cables, providing an environmental seal for the inner and outer sheath of cables. These indoor and outdoor cable glands also provide mechanical cable retention and electrical continuity via armored wire termination. A detachable armour cone and anyway universal clamping ring arrangement allow the cable to be easily disconnected from the equipment, for maintenance and change out, etc.
technical data: | |
| Type: | CGW (Double Compression) |
|---|---|
| Design Specification: | IEC 60529 [WEATHER-PROOF] |
| Threads Options: | E.T., NPT, METRIC & PG |
| Operating Temperature: | -30`C to + 100`C |
| Protection Class: | IP 66 [TESTED BY CIMER] |
| Gland Material: | Electro Nickel Plated Brass (general) Material options: Stainless steel, Mild steel & Aluminum Plating options: Chrome, Tin, Zinc |
| Seal Material: | Neoprene Rubber |
| Accessories (optional): | Shroud, Earth Tag, Blank plug, Adapter / Reducer, Entry Thread Seal |
Part Number Details:
| |
 |
Cable Gland Selection Table:
(All dimensions except thread sizes are in M.M.)
Note:
Special / customized requirement will also be accepted.

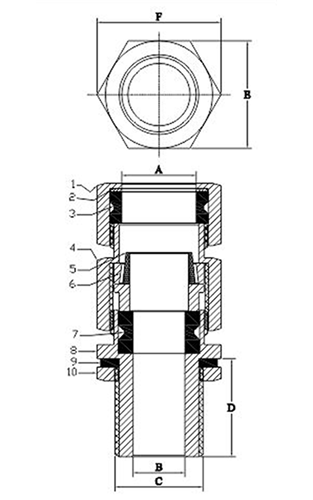

| GLAND SIZE(Cat. No.) | DIA. A”(Max. – Min.) | DIA. “B”(Max. – Min.) | ENTRY “C”(E.T. threads) | LENGTH “D”(Max.) | FLAT “E”(Max.) | CORNER “F”(Max.) |
|---|---|---|---|---|---|---|
| CGF 01SS | 13.00 – 8.50 | 8.50 – 6.50 | 3/4″ | 25.00 | 22.00 | 25.40 |
| CGF 01S | 16.50 – 13.00 | 11.00 – 7.50 | 3/4″ | 25.00 | 25.00 | 29.00 |
| CGF 01 | 19.50 – 15.00 | 14.00 – 9.00 | 3/4″ | 25.00 | 28.00 | 32.00 |
| CGF 01A | 19.50 – 15.00 | 14.00 – 11.00 | 1″ | 25.00 | 28.00 | 32.00 |
| CGF 02 | 21.00 – 16.50 | 14.50 – 11.50 | 1″ | 25.00 | 31.50 | 36.50 |
| CGF 02A | 21.00 – 16.50 | 14.50 – 12.00 | 3/4″ | 25.00 | 31.50 | 36.50 |
| CGF 03 | 23.00 – 17.00 | 18.00 – 14.00 | 1″ | 25.00 | 32.00 | 37.00 |
| CGF 04 | 27.00 – 22.00 | 20.00 – 16.50 | 1″ | 25.00 | 38.00 | 44.00 |
| CGF 04A | 27.00 – 22.00 | 20.00 – 16.50 | 1.1/4″ | 25.00 | 38.00 | 44.00 |
| CGF 05 | 31.00 – 24.00 | 24.00 – 16.00 | 1.1/4″ | 25.00 | 41.00 | 47.00 |
| CGF 05A | 31.00 – 24.00 | 24.00 – 16.00 | 1.1/2″ | 25.00 | 41.00 | 47.00 |
| CGF 06 | 33.00 – 27.00 | 28.00 – 24.00 | 1.1/2″ | 25.00 | 46.00 | 52.50 |
| CGF 06A | 33.00 – 27.00 | 28.00 – 24.00 | 1.1/4″ | 25.00 | 46.00 | 52.50 |
| CGF 07 | 37.00 – 30.00 | 31.00 – 25.00 | 1.1/2″ | 25.00 | 52.00 | 59.50 |
| CGF 08 | 42.00 – 35.00 | 35.00 – 29.00 | 2″ | 25.00 | 56.00 | 64.00 |
| CGF 09 | 46.00 – 37.00 | 41.00 – 32.00 | 2″ | 25.00 | 59.00 | 67.00 |
| CGF 010 | 53.00 – 45.00 | 44.00 – 39.00 | 2″ | 25.00 | 67.50 | 77.00 |
| CGF 010A | 53.00 – 45.00 | 44.00 – 39.00 | 2.1/2″ | 25.00 | 67.50 | 77.00 |
| CGF 011 | 61.00 – 52.00 | 54.00 – 42.00 | 2.1/2″ | 25.00 | 80.00 | 92.00 |
| CGF 012 | 68.00 – 58.00 | 60.00 – 51.00 | 3″ | 25.00 | 85.00 | 98.00 |
| CGF 013A | 73.00 – 62.00 | 64.00 – 59.00 | 3″ | 25.00 | 97.00 | 112.00 |
| CGF 013 | 78.00 – 68.00 | 70.00 – 62.00 | 3.1/4″ | 25.00 | 99.00 | 114.00 |
| CGF 014 | 85.00 – 72.00 | 79.00 – 69.00 | 3.1/2″ | 25.00 | 108.00 | 125.00 |
| CGF 015 | 94.00 – 81.00 | 88.00 – 76.00 | 4″ | 25.00 | 117.00 | 135.00 |
| CGF 016 | 105.00 – 92.00 | 98.00 – 88.00 | 4.1/2″ | 25.00 | 130.00 | 150.00 |
*Dimensions are subject to be changed without any prior notice.
